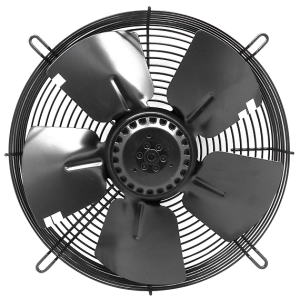

Industrial Axial Fans Φ300 | Used In Condenser | Aluminum Die-casting Rotor
- Model
- Φ 300 -5
Item specifics
- Blades Material
- Carbon Steel
- Rotor Material
- Aluminum Die-casting
- Protection Class
- IP44
- Insulation Class
- F
- Bearing
- Ball Bearing
Review
Description
Industrial Axial Fans Φ300 | Used In Condenser | Aluminum Die-casting Rotor FEATURES
A2E300S-92/35 Industrial Axial Fans
Advantages of axial fan:
1, Good cooling effect
2, ventilation time is easy to master, not easy to appear condensation
3, no separate fan, convenient and flexible
4, Low energy consumption per unit, which is particularly important in advocating energy saving;
Disadvantages:
1,Due to small air volume, long ventilation time;
2, the precipitation effect is not obvious, high water grain should not be ventilated by axial fan.
Industrial Axial Fans Φ300 | Used In Condenser | Aluminum Die-casting Rotor PRODUCT DESCRIPTION
Voltage Input | AC Single-phase | DiameterΦ( mm ) | 300 |
Voltage（V） | 220 | Air Flow（m³/h） | 1500 |
Power (W ) | 145 | Noise ( dB) | 60 |
Speed ( RPM ) | 2300 | Temperature(°C) | -30℃/+60℃ |
Industrial Axial Fans Φ300 | Used In Condenser | Aluminum Die-casting Rotor Performance Parameters
Model selection
Type |
Voltage
V |
Frequency
Hz |
Current
A |
Input Power W | Speed RPM | Airflow ( 0 Pa) m³/h | Noise dB (A) | AC/EC | |
A2E300S-92/35 | 220 | 50 | 0.66 | 145 | 2300 | 1700 | 60 | AC | |
60 | 0.85 | 180 | 2250 | 2000 | 62 | ||||
A4E300S-92/35 | 220 | 50 | 0.42 | 85 | 1400 | 1700 | 55 | AC | |
60 | 0.46 | 100 | 1380 | 1850 | 56 | ||||
A2D300S- 92/35 | 380 | 50 | 0.25 | 145 | 2400 | 1600 | 50 | AC | |
60 | 0.29 | 180 | 2450 | 2000 | 51 | ||||
A4D300S-92/35 | 380 | 50 | 0.24 | 75 | 1400 | 1700 | 55 | AC | |
60 | 0.25 | 90 | 1380 | 1800 | 56 | ||||
A2E200S-92/25 | 115 | 50 | 1.12 | 125 | 2550 | 1760 | 57 | AC | |
60 | 1.35 | 155 | 2600 | 2100 | 59 | ||||
A4E300S-92/35 | 115 | 50 | 0.82 | 90 | 1350 | 1650 | 45 | AC | |
60 | 0.91 | 100 | 1600 | 1800 | 55 | ||||
