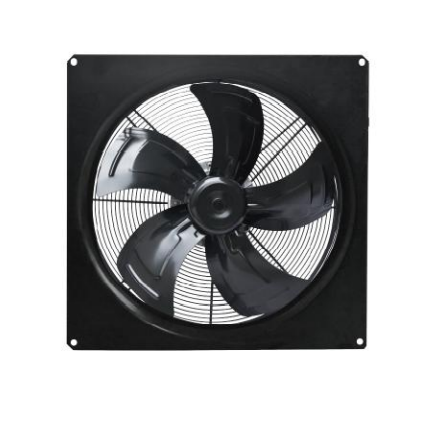

Standard Square Axial Fan Φ330 | Used In Condenser | OEM
Standard Square Axial Fan Φ330  |  Used In Condenser | OEM
Standard Square Axial Fan Φ330  |  Used In Condenser | OEM
Standard Square Axial Fan Φ330  |  Used In Condenser | OEM
Model
A4E330S-92/35

Item specifics

Blades Material
Carbon Steel
Rotor Material
Aluminum Die-casting
Protection Class
IP44
Insulation Class
F
Bearing
Ball Bearing

Review

Description

Standard Square Axial Fan Φ330  |  Used In Condenser | OEM  FEATURES
axial fan drawing
A4E330S-92/35         Standard Square Axial Fan

Product description:

used in condenser low noise AC axial fan series has excellent performance, with diameter range from φ200 to φ900 mm and maximum air volume up to 24,000m3/h. This series of fans has been market tested over years and we have optimized product structural reliability, materials, and blade design, with the manufacturing process having been also upgraded. This external rotor fan series has a compact structure, operates reliably and is both energy saving and efficient. It is designed with low noise, a long service life, and is easy to install.

Standard Square Axial Fan Φ330  |  Used In Condenser | OEM  FEATURES  PRODUCT DESCRIPTION
Voltage Input
AC  Single-phase
DiameterΦ( mm )
330
Voltage(V)
220V
Air Flow(m³/h)
1900
Power (W )
110
Noise ( dB)
58
Speed ( RPM )
1380
Temperature(°C)
-30℃/+60℃
Standard Square Axial Fan Φ330  |  Used In Condenser | OEM  FEATURES  Performance Parameters
air flow drawing of axial fan
Standard Square Axial Fan Φ330  |  Used In Condenser | OEM  Model selection
Type
Voltage
V
Frequency
Hz
Current
A
Input  Power W
Speed
RPM
Airflow ( 0 Pa)     m³/h
Noise
dB (A)
AC/EC
A4E330S-92/35
220
50
0.52
105
1380
2050
59
AC
60
0.62
140
1550
2100
61
A4D330S-92/35
380
50
0.26
110
1380
2050
58
AC
60
0.31
142
1500
2150
60
