Industrial Axial Flow Fan Φ 710 | F Protection Class | Used In Condenser | Customization
Industrial Axial Flow Fan  Φ 710  |  F  Protection Class  |  Used In Condenser   |  Customization
Industrial Axial Flow Fan  Φ 710  |  F  Protection Class  |  Used In Condenser   |  Customization
Industrial Axial Flow Fan  Φ 710  |  F  Protection Class  |  Used In Condenser   |  Customization
Model
A6D710S-168/50

Item specifics

Blades Material
Carbon Steel,Stainless Steel,Aluminum choice
Rotor Material
Aluminum Die-casting
Protection Class
IP54
Insulation Class
F
Bearing
Ball Bearing

Review

Description

Industrial Axial Flow Fan  Φ 710  |  F  Protection Class  |  Used In Condenser  | FEATURES
axial fan
axial fan

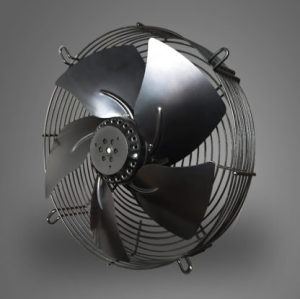

A6D710S-168/50         Industrial Axial Flow Fan

Product description:

used in condenser low noise AC axial fan series has excellent performance, with diameter range from φ200 to φ900 mm and maximum air volume up to 24,000m3/h. This series of fans has been market tested over years and we have optimized product structural reliability, materials, and blade design, with the manufacturing process having been also upgraded. This external rotor fan series has a compact structure, operates reliably and is both energy saving and efficient. It is designed with low noise, a long service life, and is easy to install.

PRODUCT DESCRIPTION
Voltage Input
AC  Three -phase
DiameterΦ( mm )
710
Voltage(V)
380
Air Flow(m³/h)
14300
Power (W )
830
Noise ( dB)
75
Speed ( RPM )
900
Temperature(°C)
-30℃/+60℃
Industrial Axial Flow Fan  Φ 710  |  F  Protection Class  |   Customization Performance Parameters
air flow drawing of axial fan
Model selection
Type
Voltage
V
Frequency
Hz
Current
A
Input  Power W
Speed
RPM
Airflow ( 0 Pa)     m³/h
Noise
dB (A)
AC/EC
A6D710S-168/50
380
50
1.7
720
930
11500
77
AC
60
1.95
1050
1090
14500
79
A8D710S-168/50
380
50
1.00
460
660
10000
74
AC
60
1.18
630
730
11000
75

A6D710S-180/75

380
50
1.9
1050
900
16500
77

AC
60
2.42
1250
1100
11500
79

A8D710S-180/75

380
50
1.5
670
690
11500
71

AC
60
0.9
450
580
9000
68
Customize Advantage
advantage
FAQ
Q:   What Is our company product ?
A :   AC &EC &DC axial fan, centrifugal fan, shaded pole mothor.
Q:   How to order?
A :   Please send us your purchase order by Email or Fax, or you can ask us to send you Proforma Invoice for your order. We need to know the following information for your order:
1) Product information: Quantity, Specification ( voltage, input power, speed, airflow, working point, working temperature ), Artwork or Sample will be the best.
2) Delivery time required.
3) Shipping information: Company name, Address, Phone number, Destination seaport/airport.
4) Forwarder’s contact details if there is any in China.
Q:   How long and how to get sample from us ?
A :    1) If you need some sample to text, we can make as per your request, please provide us PDF or Al for Making. You should pay forthe transportation freight of samplesand sample cost (cost from USD30 to USD200, depend on the product), while the sample cost can be refundable if order is confirmed and QTY goes up to 500pcs.
2) Lead time for making sample:  about 7 days
3) The transportation freight of samples: the freight depends on the weight and packing size and your area.
Q:   What advantages we have?
A :   Rich experience: We have more than 10 years experience in this industry. That means, we can preview the problems for the orders and products. Therefore, it will make sure to reduce the risk of bad situation to happen.
Point to point service: There is one sale who will serve you from inquiry to products shipped out.During the process, you just need to discuss with her for all problems and the way saves much time
Free design: If you are not ready for the designs, the professional designers will be able to help you with it freely.
Strict QC: For each order, strict inspection will be carried out by the QC department before shipping. The bad quality will be avoid within door.
Shipping: We have shipping department and forwarder, so we can promise faster delivery and make the goods well protected.
